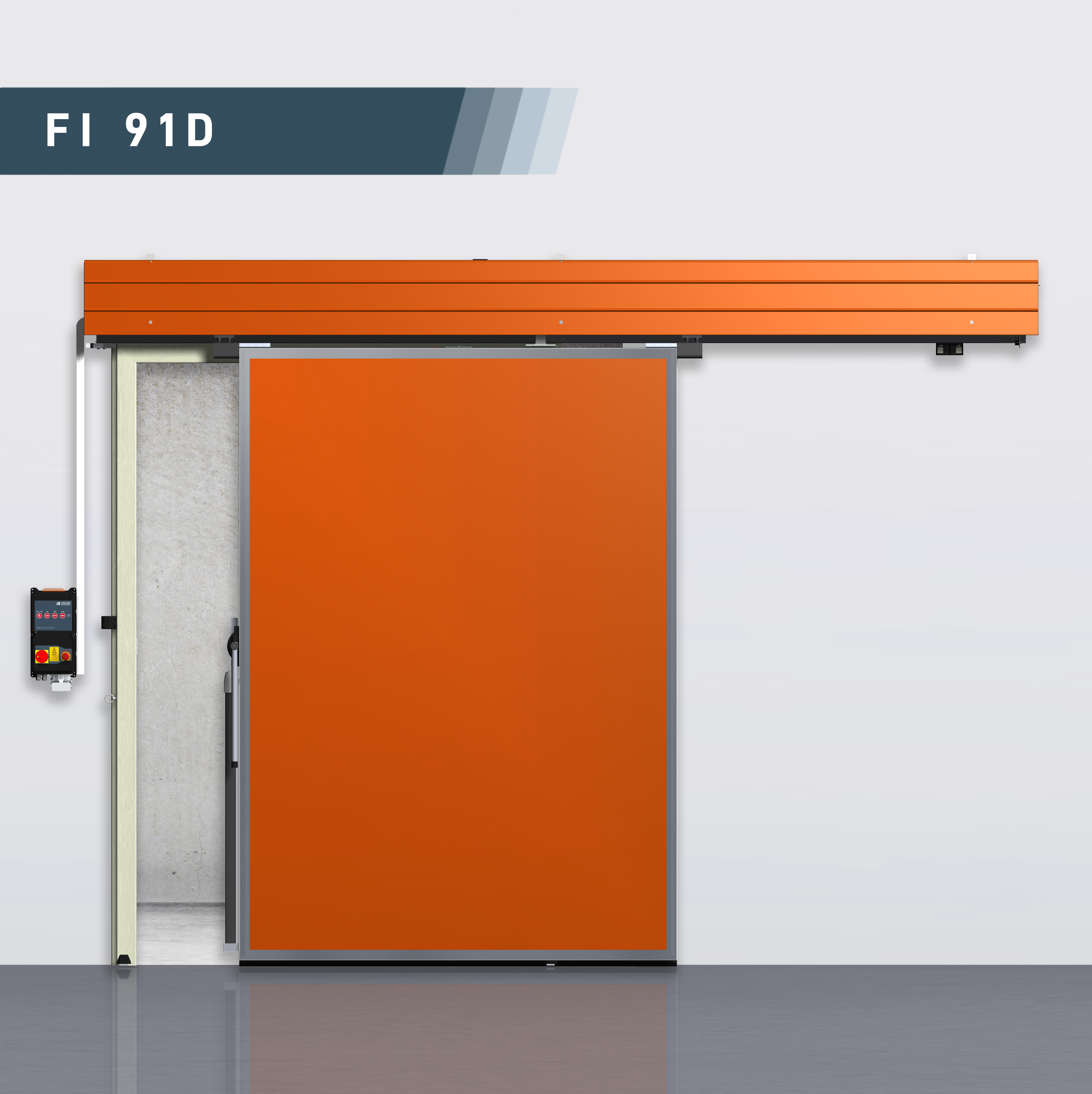

FI 91D

FI 91D

Industrial sliding doors
  • Sliding door type.
  • The door slides by aluminum support with bearings on high resistance plastic modules applied on a high-resistance anodized aluminum alloy guide.
  • The door panel is made up of a satin stainless steel (AISI 304) structure.
  • External lever handle.
  • Internal lever handle.
  • Foam density 40 Kg/mc.
  • All are regularly supplied with counterframe with Threshold (without threshold on request)
  • Manual version are pre-arranged to be fitted with the automatic mechanism.
  • Doors are pre-arranged to opening direction reverse.
Other version available:
FI 91D 2A - Double-leaf door


Choice of the door panel:


0C FOR COLD ROOMS UP TO -5°C
  • Door panel thickness 95mm.
  • Perimetral and under-door sealing gaskets.


BT FOR LOW TEMPERATURE ROOMS UP TO -30°C (OUTSIDE THE ROOM)
  • Door panel thickness 115mm.
  • Double perimetral and under-door sealing gaskets.
  • Perimetral heating wire for door panel (between the two gaskets).
  • Heating wire for threshold.
  • Heating wire for stainless steel counterframe.

Customize the product:

Pannellatura - Inox
Pannellatura - Preverniciata

Counterframe execution:

Controtelaio - Inox
Controtelaio - Vetroresina



Automation:

  • Choice between sliding Manual and sliding Automatic version.
  • The automation is realised through a geared motor.
  • Electrical box with control and wiring.
  • Transmission chain.
  • Motor with internal encoder (allows to remove the limit switch).
  • Cable button opening.
  • Safety edge.


Optionals:

  • Connecting plates.
  • Guard hood. (Standard for automatic version)
  • Remote control by transmitter 9 or 128 canals - 434 Mhz (for sliding automatic doors).
  • Fixed porthole.
  • Safety photocells.
  • Key lock.



Available panel colors and materials:

RAL 2009

RAL 9010

RAL 5024

RAL 1018

RAL 5010

RAL 9002

Acciaio INOX

Vetroresina bianca
Download

ITA - Prodotti Foris Index - 01 - Porte industriali.pdf
ITA - Brochure - Porte industriali - FI 91D.pdf
